OSO means the low rumble of the California brown bear. The Custom 12" OSO, with a single active ultra-low distortion driver, is paired up with two matching passive radiators. This subwoofer can move massive amounts of air to provide outstanding output for its size. This is my key design point, sealed cabinets that use passive radiators are more compact when compared to its larger ported brother.
This project had a distinct purpose. To pair nicely with the trend of speaker companies reissuing 1950's to 1970's floor standing home theater speakers. The sound of this speaker is modern and tight - something that heritage speakers cannot produce. The OSO design is meant to pair visually with mid century furnishings and sounds. Light and fast ALUMINUM drivers produce the omni waves. Timeless Design!
Dimensions: 16.5" wide - 10" deep - 30" tall
0.5 dB efficient driver with 500 watt amplifier combines for excellent output capability
Passive radiator assisted design extends bass response and improves output
OSO Audio 500W Subwoofer Plate Amplifier Specifications: • Power output: 500 watts RMS into 4 ohms, THD+N <1.0% • Signal to noise ratio: 97.9 dB (A-weighted) • Power requirements: 110~120/220~240 VAC selectable, 50/60 H • Low pass adjustment: 30 Hz to 125 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: 110~120/220~240 VAC selectable, 50/60 Hz.
OSO Audio 12" Subwoofer Specifications: • Power handling: 700 watts RMS/1,400 watts max • Le: 1.75 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 26-600 Hz • Fs: 26.2 Hz • SPL: 90.5 dB 2.83V/1m • Vas 1.89 ft³ • Qms: 3.63 • Qes: 0.33 • Qts: 0.31 • Xmax: 12.3 mm.
PROJECT INVOLVEMENT
Industrial Design
Photo Realistic Renderings
Mechanical Engineering
Prototype creation / build
Veneer and finishing
Designed to Warm the Heart (NOT YOUR STANDARD CUBE)
Ideation Process
Renderings
Prototype Process - Handmade creation

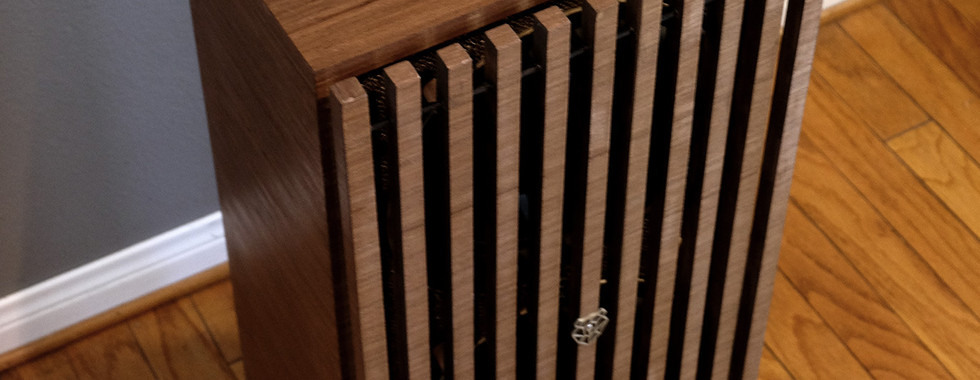

The Final OSO layout with vertical grill

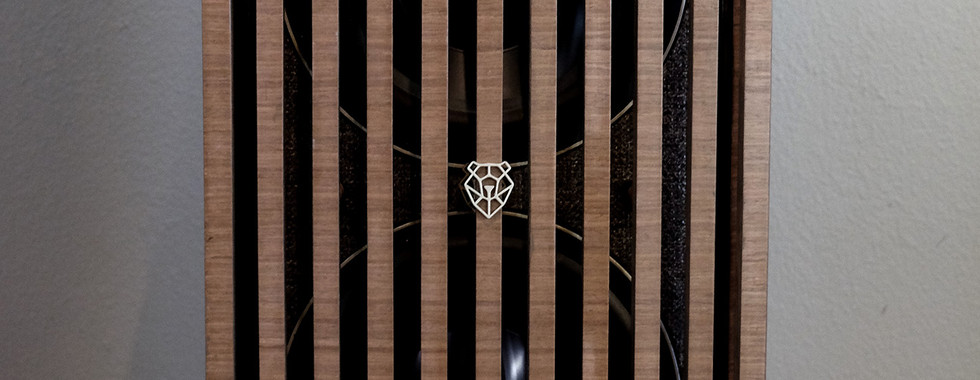

Magnetic grill grips to the front face at 6 points. The grill is 50% open and air flows freely as each driver moves. Standard cloth grills have a measurable resistance which creates a drop in efficacy and driver response.
Rear View with Passive firing into a flat surface (rear wall)
In Room experience
Inspiration / Throw Back Design History
