Electrodes for adult and infant

This post follows the design progression of a graphic / user interface project for Cardiac Science involving what a first time defibrillator user would see on a foil pouch that needs to be opened as well as the internal electrode pads themselves.

Final Electrode Pouch outer graphic

Phase I - Design Exploration

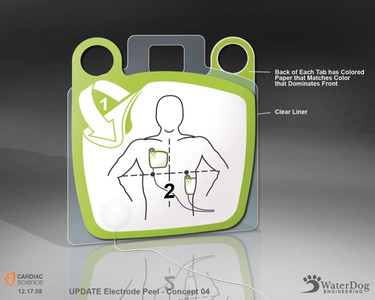

This involved a non-stick liner, 2 electrode pads, a grab ring, front graphics, and easy peal finger grip feature.

Phase II - Design Refinement

For Adult electrode pad

Phase II - Design Exploration - Change Order to include additional ages

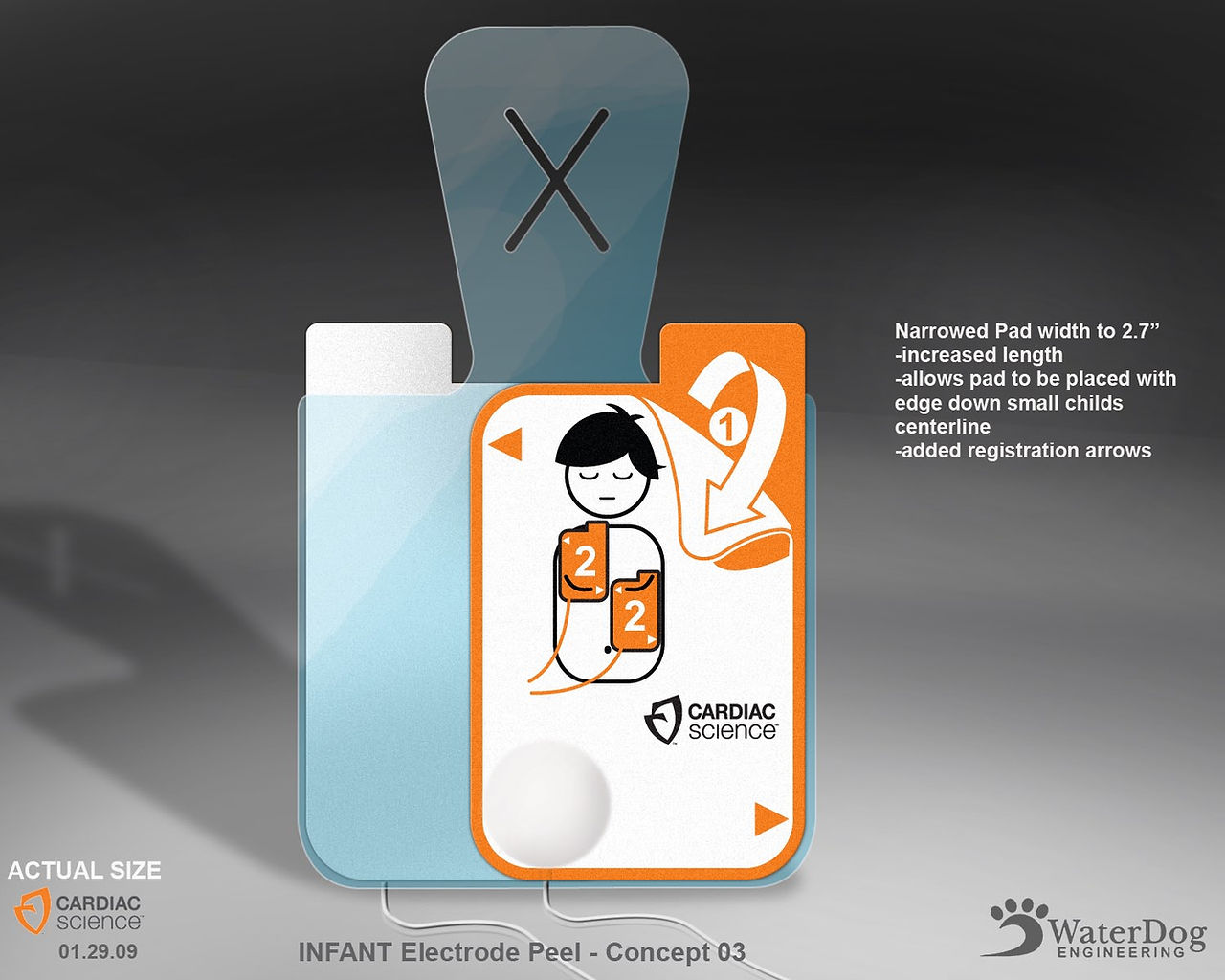

For Infant and Child electrode pad

Phase II - Design Exploration

For Infant and Child electrode pad
